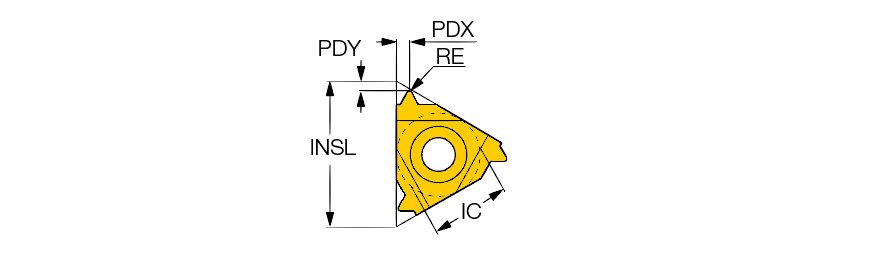

16ER 10 UNJ IC806
Laydown Threading Insert ; 10 Threads/" TPI ; 60 Triangle Shape ; THFT | ; Carbide ; IC806 ; AlTiN "SUMO TEC"
| Thread Standard | THFT | | Applicable Material | | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 10 Threads/" | Shape | 60° Triangle |
| Corner Radius (RE) | 0.38 mm | Cutting Item Count (CICT) | 2 |
| Grade | IC806 | Tool Type | Threading Regular Inserts |
| Coating | AlTiN "SUMO TEC" | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | Internal | Thread Form Type (THFT) | NJ60 |
| Application | | External Thread Milling | External Threading | |
Product Features
| Family Description | External UNJ ( MIL-S-8879C 9-1992 Class 3A ) profile, laydown threading inserts. Application: aviation and aerospace industry. | Country of Origin | Israel |
| Remarks | UNJ MIL-S-8879C 9-1992 Class 3A For Insert Identification System, click on "More Info" |
Shipping Info
Package Weight
0.013
