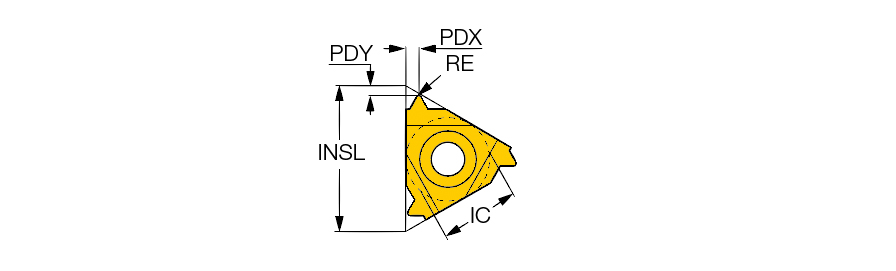

11IR 1.00 MJ IC806
Laydown Threading Insert ; 1 mm TP ; 60 Triangle Shape ; THFT | ; Carbide ; IC806 ; AlTiN "SUMO TEC"
| Thread Standard | THFT | | Applicable Material | | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1 mm | Shape | 60° Triangle |
| Corner Radius (RE) | 0.05 mm | Cutting Item Count (CICT) | 2 |
| Grade | IC806 | Tool Type | Threading Regular Inserts |
| Coating | AlTiN "SUMO TEC" | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | Internal | Thread Form Type (THFT) | MJ60 |
| Application | | Internal Threading lay down | |
Product Features
| Family Description | Internal MJ ISO 5855 metric full profile laydown threading inserts, for the aviation and aerospace industries | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on "More Info" |
Shipping Info
Package Weight
0.01
