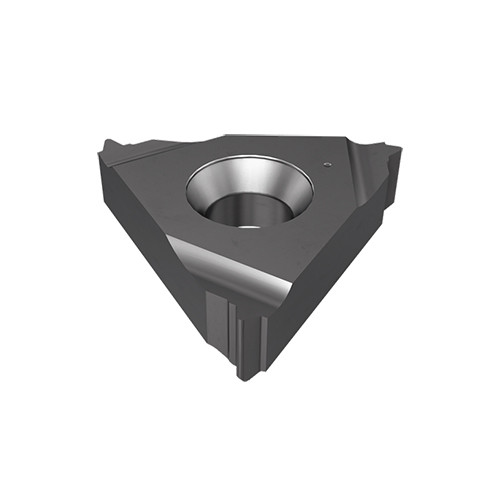

16ER 1.25 MJ IC806
| Thread Standard | THFT | | Application | | External Threading | |

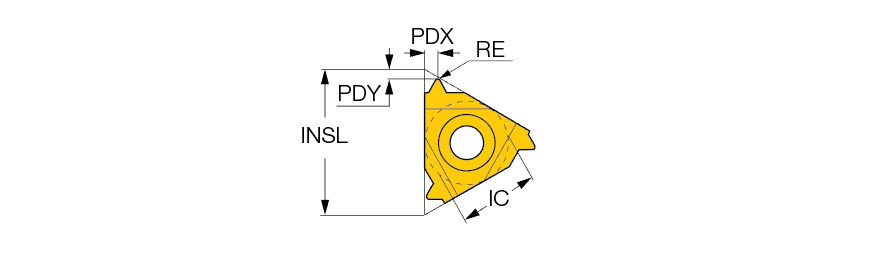

| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 1.25 mm | Shape | 60° Triangle |
| Corner Radius (RE) | 0.0083″ | Tool Type | Threading Regular Inserts |
| Grade | IC806 | Measurement Type | Inch |
| Coating | AlTiN "SUMO TEC" | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | MJ60 |
| Cutting Position | Internal | Profile Distance EY (PDY) | 0.0315″ |
Product Features
| Family Description | External MJ ISO 5855 metric full profile laydown threading inserts. Used for aviation and aerospace industries | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info |
Shipping Info
Package Weight
0.014
