1/2X1/2X2-1/2X5 ZRN .03R

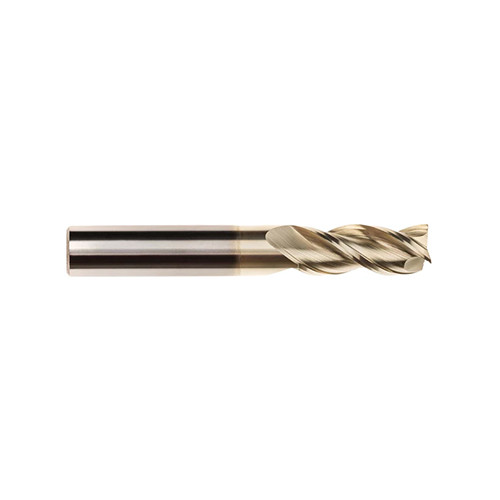

SQ End Mill; 1/2″ Dia. × 2-1/2″ LOC × 1/2″ Shank Dia. × 5″ OAL ; 0.03″ RE ; 3 FL ; Carbide ; ZrN ; Series M223-CR
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 2-1/2″ | Grade | IM108 |
| Overall Length (OAL) | 5″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | ZrN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | M223-CR |
Product Features
| Remarks | •Designed for machining aluminum•ZrN coated for maximum tool life | Country of Origin | USA |
Shipping Info
Package Length
5.29000
Package Width
.20000
Package Weight
0.4
