22ER 5 BUT 0.75 IC250

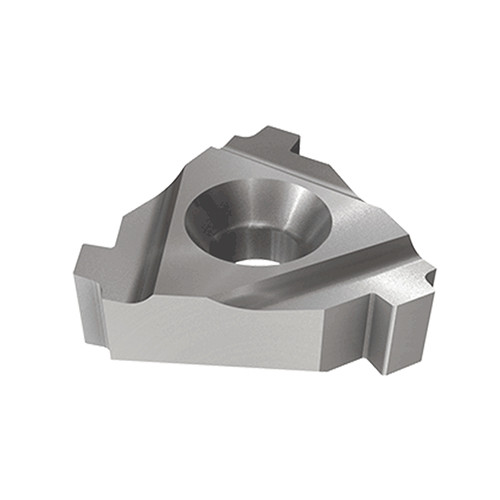

Laydown Threading Insert ; 5 TPI ; 60 Triangle Shape ; 0.866″ Length ; 1/2″ IC ; THFT | ; Carbide ; IC250 ; TiCN+TiN

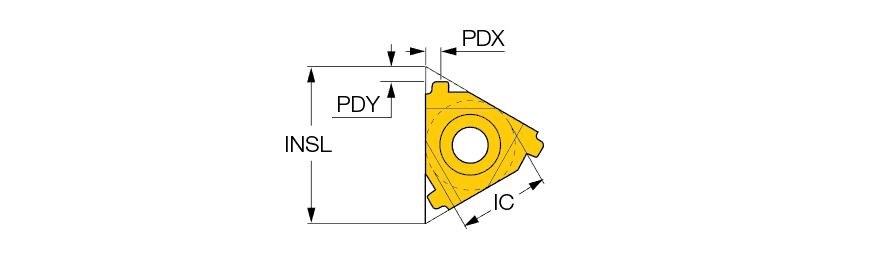

| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.866″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 5 | Tool Type | Threading Regular Inserts |
| Grade | IC250 | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | BUT |
| Cutting Position | External | Profile Distance EY (PDY) | 0.0866″ |
| Application | | External Threading | |
Product Features
| Family Description | External BUT - oil thread profile (API STD.5B) laydown threading inserts, for buttress casing.ress casing. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info API STD.5B |
Shipping Info
Package Weight
0.009
