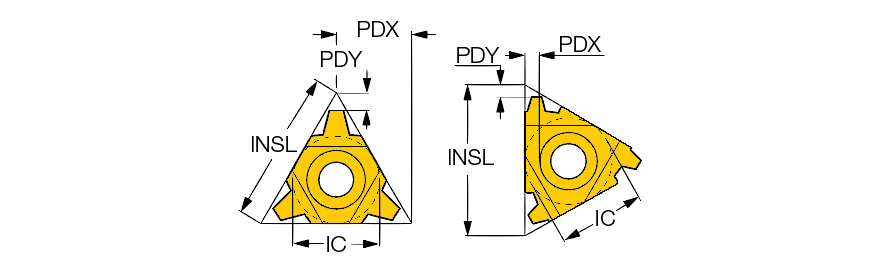

27UIRL 8 TR IC228
Laydown Threading Insert ; 8 mm TP ; 60 Triangle Shape ; THFT | ; Carbide ; IC228 ; TiCN+TiN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 8 mm | Shape | 60° Triangle |
| Corner Radius (RE) | 0.4 mm | Cutting Item Count (CICT) | 2 |
| Grade | IC228 | Tool Type | Threading Regular Inserts |
| Coating | TiCN+TiN | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | Internal | Thread Form Type (THFT) | TP30 |
| Application | | Internal Thread Milling | Internal Threading lay down | |
Product Features
| Family Description | Internal trapezoid shaped, DIN 103 laydown threading inserts, for feed screws. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on "More Info" Tolerance: Class 7H |
Shipping Info
Package Weight
0.003
