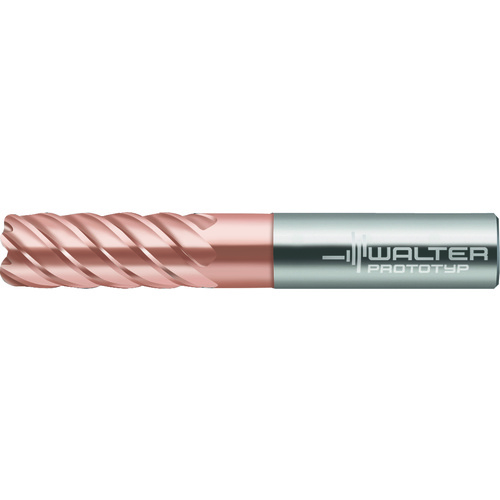

MC187.6.35A6D038-WB10TG
SQ End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 0.015″ RE ; 6 FL ; 0.8″ LBS ; Carbide ; TiAlSiN ; Series MC187
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 0.8″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Hard Materials | |
| Depth of Cut Maximum (APMX) | 3/4″ | Grade | WB10TG |
| Overall Length (OAL) | 3″ | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiAlSiN | Body Material | Carbide |
| Flute Count (NOF) | 6 | Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | 50 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | MC187 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.3
