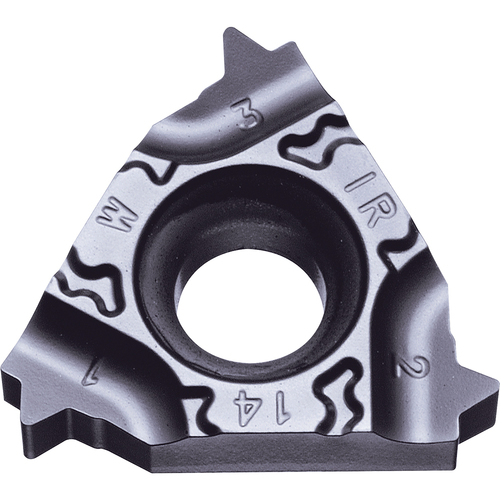

16 IR14WTF PR1115 Grade PVD Carbide, Indexable Threading Insert
| Thread Standard | G | Whit Worth | Applicable Material | Stainless Steel | Super-Alloys / Titanium |

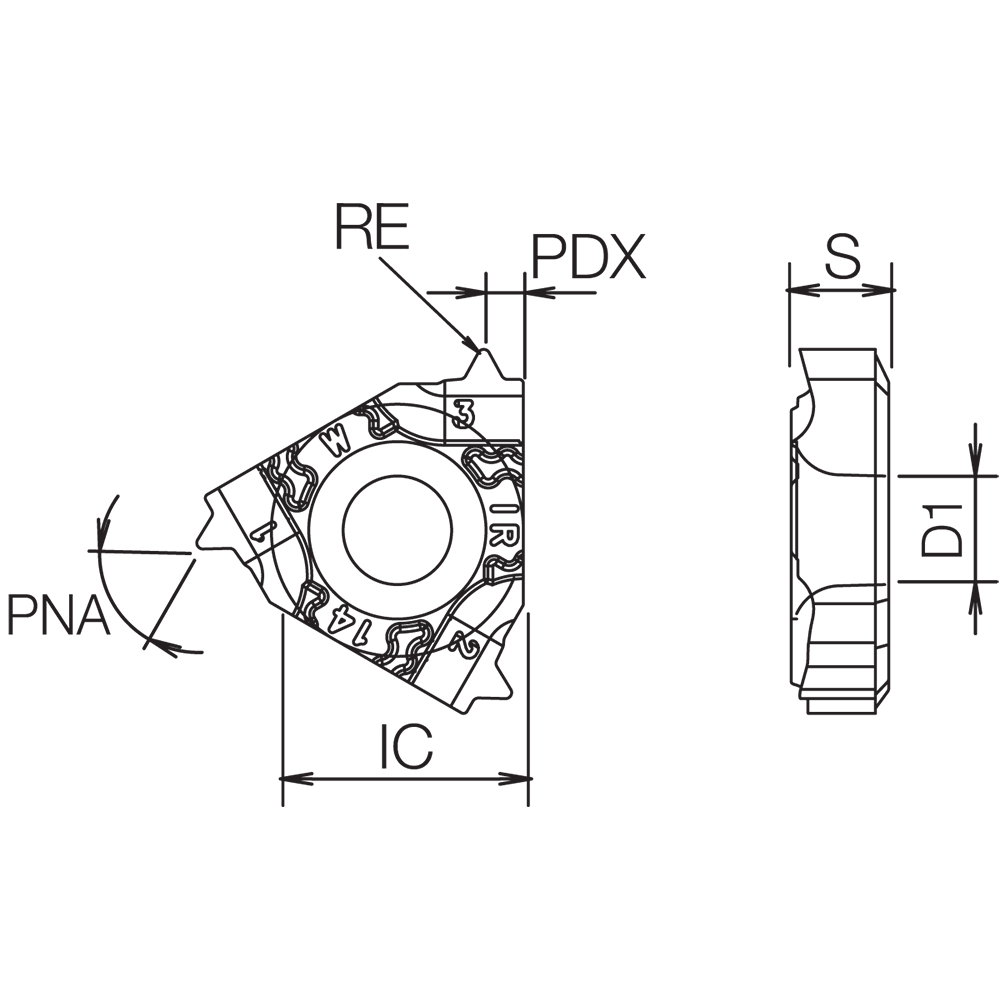

| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | 16IR |
| Threads per Inch (TPI) | 14 | Mounting Style | Clamp | Screw |
| Corner Radius (RE) | 0.009″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.145″ | Chip Breaker Type | TF |
| Grade | PR1115 | Cutting Item Count (CICT) | 3 |
| Coating | TiAlN | Series/List # | LDT |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | Internal | Hole Diameter | 0.1575″ |
| Application | Internal Threading | Profile Included Angle (PNA) | 55 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.074
