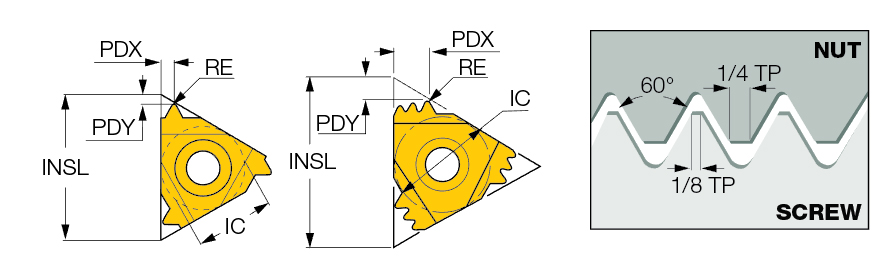

11ER 20 UN IC908
Laydown Threading Insert ; 20 Threads/" TPI ; 60 Triangle Shape ; THFT | ; Carbide ; IC908 ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 20 Threads/" | Shape | 60° Triangle |
| Corner Radius (RE) | 0.19 mm | Cutting Item Count (CICT) | 1 |
| Grade | IC908 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | External | Thread Form Type (THFT) | UN60 |
| Application | | External Thread Milling | External Threading | |
Product Features
| Family Description | External American UN full profile (UN, UNC, UNF, UNEF) laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer for general applications | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on "More Info". Tolerance: Class 2A. For threading between walls use GRIP-type insert TIP-UN. |
Shipping Info
Package Weight
0.004
