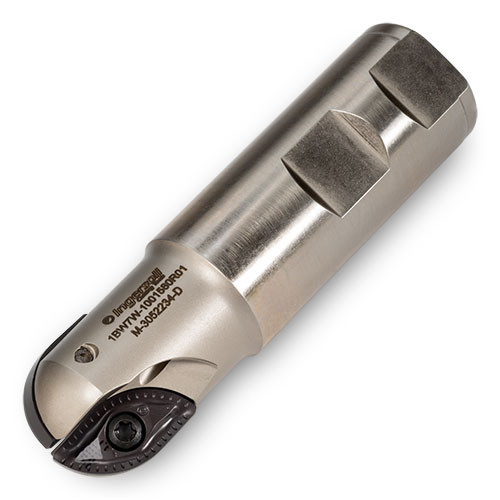

1BW7V-0704084R01
Indexable End Mill; 3/4″ Dia. × 3/8″ LOC × 3/4″ Shank Dia. × 6″ OAL × 2.094″ LU
| Cutting Diameter (DC/DCX) | 3/4″ | Usable Length (LU) | 2.094″ |
| Cutting Diameter (DC) | 3/4″ | Corner Radius (RE) | 3/8″ |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
| Application | | Helical Interpolation | Rampdown | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Protruding Length (LPR) | 2-1/4″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Roughing Ball Nose End Mill, 2 Effective Insert with 2 indexes Max. depth of cut: Full Radius Insert corners: .250″, .375″ & .500″ R | Country of Origin | Usa |
Shipping Info
Package Weight
0.001
