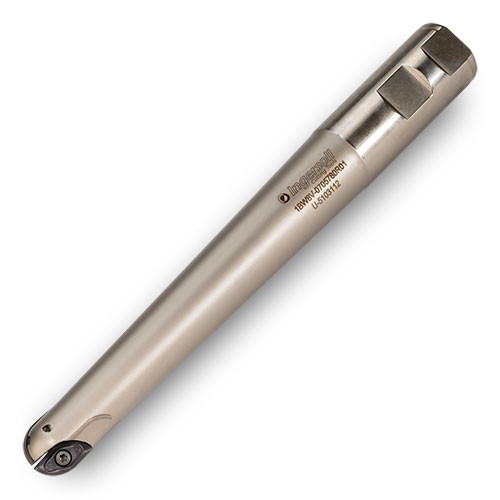

1BW8T-0504584R01
Indexable End Mill; 1/2″ Dia. × 1/4″ LOC × 3/4″ Shank Dia. × 6-1/2″ OAL × 0.524″ LU
| Cutting Diameter (DC/DCX) | 1/2″ | Usable Length (LU) | 0.524″ |
| Cutting Diameter (DC) | 1/2″ | Corner Radius (RE) | 1/4″ |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 6-1/2″ | Measurement Type | Inch |
| Application | | Helical Interpolation | Rampdown | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Protruding Length (LPR) | 4-1/2″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Roughing Ball Nose End Mill, 2 Effective Insert with 2 indexes Max. depth of cut: Full Radius Insert corners: .250″ to .500″ R | Country of Origin | USA |
Shipping Info
Package Weight
0.001
