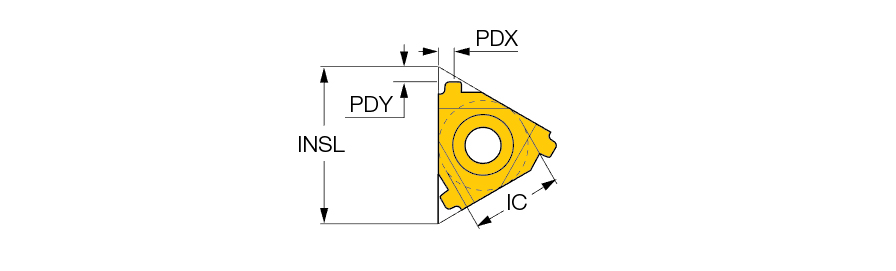

22ER 5 EL 1.25 IC250
| Thread Standard | THFT | | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 1/2″ | Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
| Insert Length (INSL) | 0.866″ | Applicable Material | Steel | Stainless Steel |
| Thread Pitch (TP) | 3 mm | Shape | 60° Triangle |
| Threads per Inch (TPI) | 5 | Cutting Item Count (CICT) | 2 |
| Corner Radius (RE) | 0.21 mm | Tool Type | Threading Regular Insert |
| Grade | IC250 | Measurement Type | Inch |
| Coating | TiCN|TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | External EL - Extreme line oil thread profile laydown threading inserts. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on "More Info" ANSI B1.9.1973 Class 2 |
Shipping Info
Package Weight
.0240
