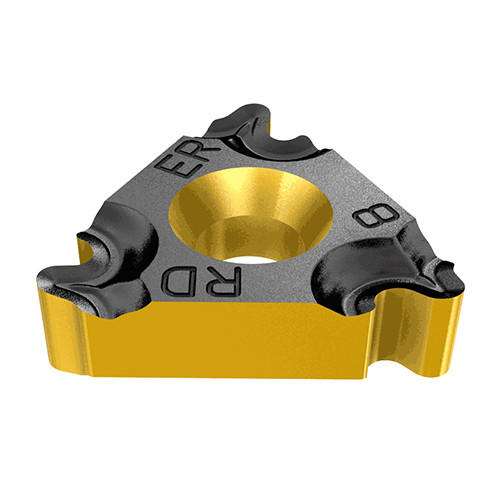

22ER 4 RND IC908
Laydown Threading Insert ; 4 TPI ; 60 Triangle Shape ; 0.866″ Length ; 1/2″ IC ; THFT | ; Carbide ; IC908 ; TiAlN
| Thread Standard | THFT | | Application | | External Threading | |

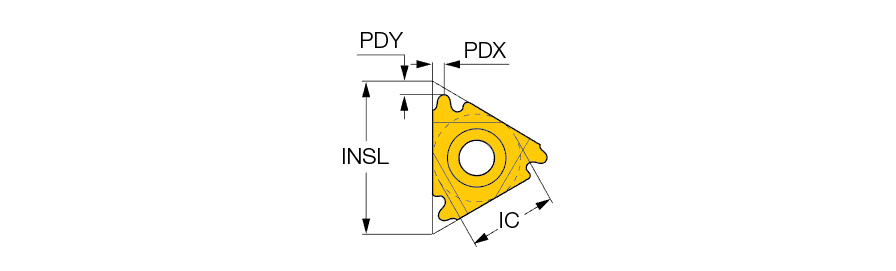

| Inscribed Circle Diameter (IC) | 1/2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.866″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 4 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.0594″ | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | RN30 |
| Cutting Position | External | Profile Distance EY (PDY) | 0.0866″ |
Product Features
| Family Description | External round laydown threading inserts, for firefighting and food industry pipe couplings (DIN 405) . | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info Tolerance: Class 7H |
Shipping Info
Package Weight
0.026
