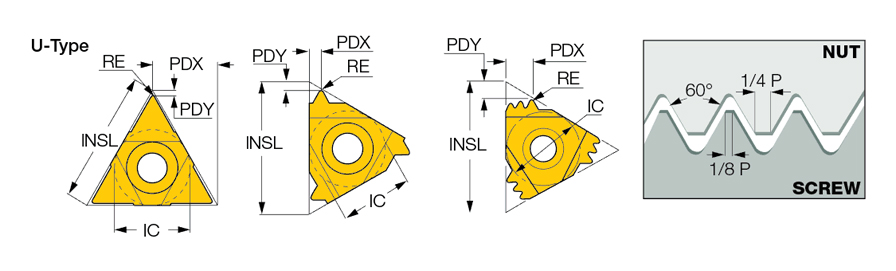

11IR 16 UN IC1007
Laydown Threading Insert ; 16 Threads/" TPI ; 60 Triangle Shape ; THFT | ; Carbide ; IC1007 ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 16 Threads/" | Shape | 60° Triangle |
| Corner Radius (RE) | 0.11 mm | Cutting Item Count (CICT) | 1 |
| Grade | IC1007 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Cutting Depth Maximum (CDX) | 11 mm |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Cutting Position | Internal | Body Material | Carbide |
| Application | | Internal Thread Milling | Internal Threading lay down | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Internal American UN, Full Profile (UN, UNC, UNF, UNEF), laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general industry. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on "More Info" Tolerance: class 2B,ANSI B1, 3M-1986 |
Shipping Info
Package Weight
0.005
