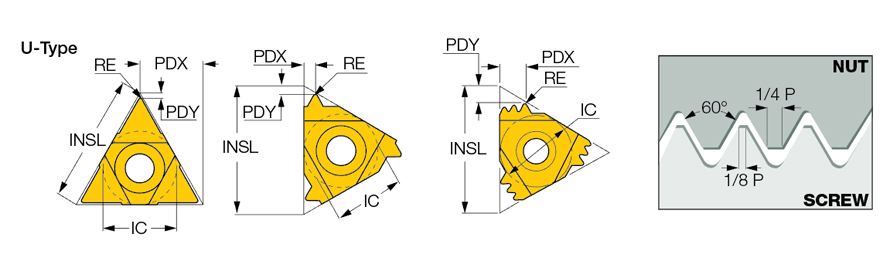

22IR 3.50 ISO IC1007
Laydown Threading Insert ; 3.5 mm TP ; 60 Triangle Shape ; THFT | ; Carbide ; IC1007 ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 3.5 mm | Shape | 60° Triangle |
| Corner Radius (RE) | 0.23 mm | Cutting Item Count (CICT) | 1 |
| Grade | IC1007 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | Internal | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | Internal Threading lay down | |
Product Features
| Family Description | Internal, ISO metric (DIN13 12-1986 class 6H) laydown threading inserts. IR/L - ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - with a chipformer. Application: general industry. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on "More Info" Tolerance: Class 6H |
Shipping Info
Package Weight
0.04
