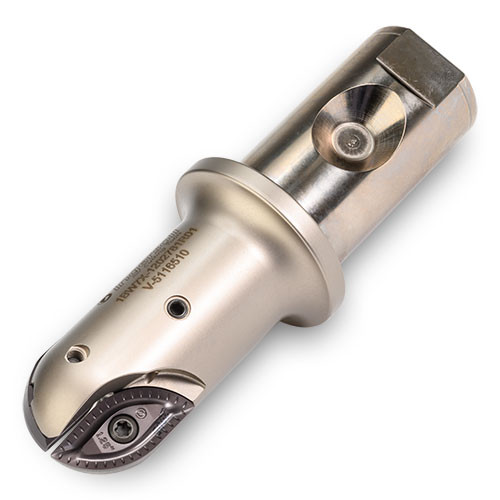

1BW7X-1202781R01
Indexable End Mill; 1-1/4″ Dia. × 0.63″ LOC × 1-1/4″ Shank Dia. × 5″ OAL × 2-1/4″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Usable Length (LU) | 2-1/4″ |
| Cutting Diameter (DC) | 1-1/4″ | Corner Radius (RE) | 1/2″ |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.63″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 5″ | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 2-3/4″ |
Product Features
| Family Description | Roughing Ball Nose End Mill, 2 Effective Insert with 2 indexes Max. depth of cut: Full Radius Insert corners: .625″ to .750″ R | Country of Origin | Usa |
Shipping Info
Package Weight
0.003
