1TG1F-15015E2R01

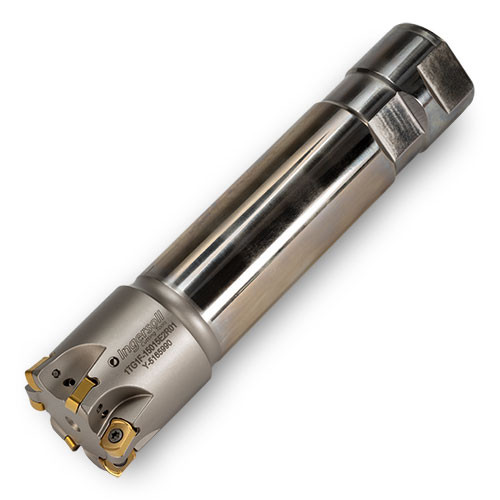

Indexable End Mill; 1-1/2″ Dia. × 0.043″ LOC × 1-1/4″ Shank Dia. × 6″ OAL × 2-7/8″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Corner Radius (RE) | 0.06″ |
| Cutting Diameter (DC) | 1.196″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.043″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 0.55 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Slotting | | Protruding Length (LPR) | 3″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Usable Length (LU) | 2-7/8″ |
Product Features
| Family Description | Three different insert edge preparations provide application flexibility Excellent high-feed performance & economy! | Country of Origin | USA |
Shipping Info
Package Weight
0.004
