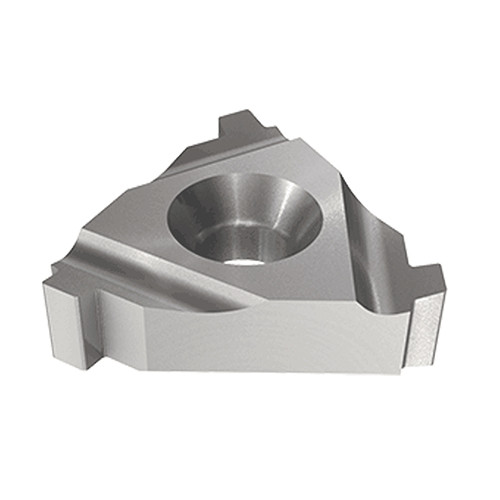

22IR 6 EL 1.5 IC908
Laydown Threading Insert ; 6 TPI ; 60 Triangle Shape ; 0.866″ Length ; 1/2″ IC ; THFT | ; Carbide ; IC908 ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

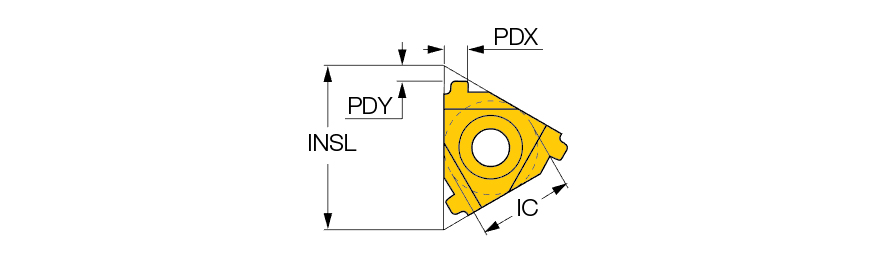

| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.866″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 6 | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | BUT |
| Cutting Position | Internal | Profile Distance EY (PDY) | 0.0748″ |
| Application | | Internal Threading lay down | |
Product Features
| Family Description | Internal EL - Extreme Line, oil thread profile laydown threading inserts. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info ANSI B1.9.1973 Class 2 |
Shipping Info
Package Weight
0.028
