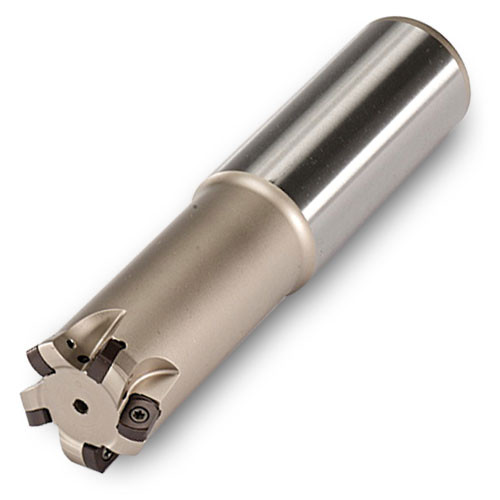

1TG1F-1203281R01
Indexable End Mill; 1-1/4″ Dia. × 0.043″ LOC × 1-1/4″ Shank Dia. × 5-1/2″ OAL × 3″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Corner Radius (RE) | 0.06″ |
| Cutting Diameter (DC) | 0.946″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.043″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5-1/2″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 0.65 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Slotting | | Protruding Length (LPR) | 3.17″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Usable Length (LU) | 3″ |
Product Features
| Family Description | Three different insert edge preparations provide application flexibility Excellent high-feed performance & economy! | Country of Origin | USA |
Shipping Info
Package Weight
0.003
