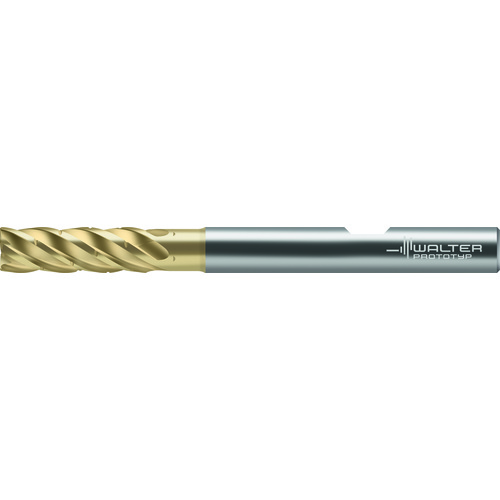

MD133-10.0W5L050D-WJ30RA SC EM
SQ End Mill; 10 mm Dia. × 32 mm LOC × 10 mm Shank Dia. × 80 mm OAL ; 0.5 mm RE ; 5 FL ; 38 mm LBS ; Carbide ; TiAlN ; Series MD133
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | Usable Length (LU) | 38 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 32 mm | Grade | WJ30RA |
| Overall Length (OAL) | 80 mm | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiAlN | Shank Standard | DIN 6535 HB |
| Flute Count (NOF) | 5 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Metric |
| Shank Type | Weldon | Series/List # | MD133 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.5 mm |
Product Features
| Country of Origin | Germany |
