MD133-20.0W6L100D-WJ30RD SC EM

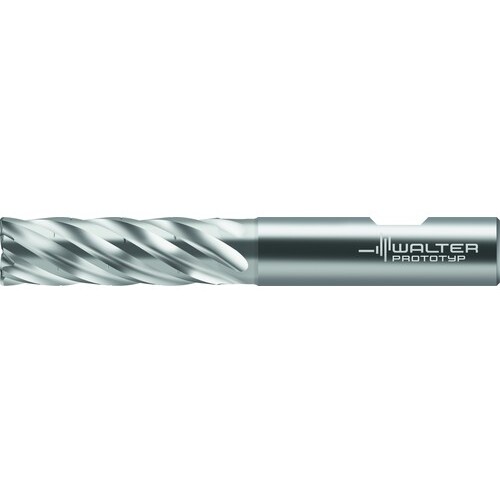

SQ End Mill; 20 mm Dia. × 63 mm LOC × 20 mm Shank Dia. × 125 mm OAL ; 1 mm RE ; 6 FL ; 73 mm LBS ; Carbide ; AlTiCrN ; Series MD133
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 20 mm | Usable Length (LU) | 73 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Applicable Material | | Steel | Cast Iron | |
| Depth of Cut Maximum (APMX) | 63 mm | Grade | WJ30RD |
| Overall Length (OAL) | 125 mm | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiCrN | Shank Standard | DIN 6535 HB |
| Flute Count (NOF) | 6 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 35 Degrees | Measurement Type | Metric |
| Shank Type | Weldon | Series/List # | MD133 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 1 mm |
Product Features
| Country of Origin | Germany |
