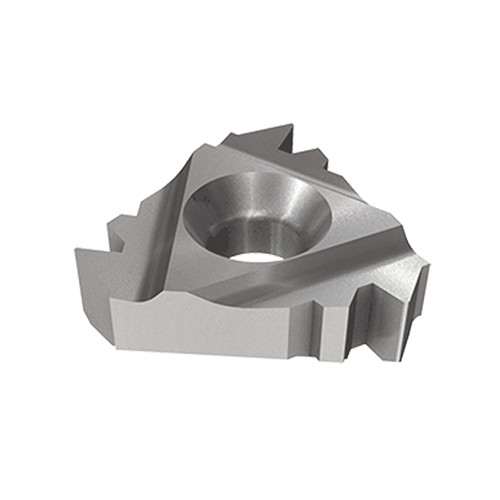

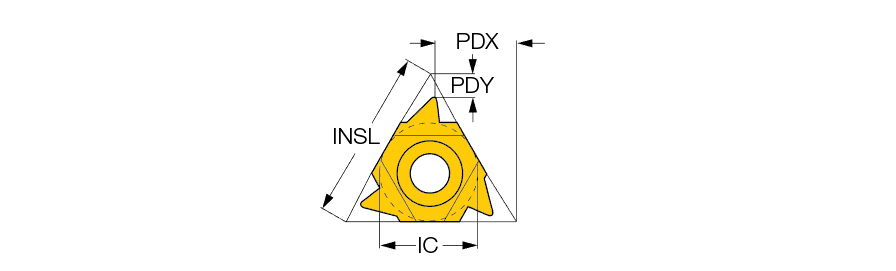

22UER 4 ABUT IC908
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.866″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 4 | Threads per Inch Minimum (TPIN) | 0 |
| Corner Radius (RE) | 0.0161″ | Threads per Inch Maximum (TPIX) | 0 |
| Grade | IC908 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | External | Thread Form Type (THFT) | ABUT |
| Application | | External Threading | | Profile Distance EY (PDY) | 0.0906″ |
Product Features
| Family Description | External American Buttress (ANSI B1.9-1973 Class 2) laydown threading inserts, for high force transmission in one direction. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info. ANSI B1.9-1973 Class 2 |
Shipping Info
Package Weight
0.033
