MC326.6.35A4L076C-WK40TF

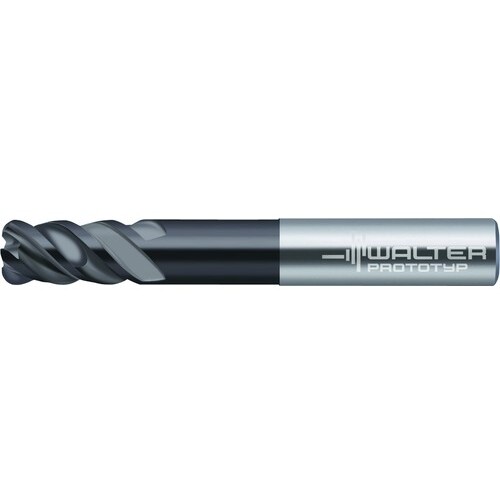

SQ End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 0.03″ RE ; 4 FL ; 1″ LBS ; Carbide ; TiAlN ; Series MC326
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 3/4″ | Grade | WK40TF |
| Overall Length (OAL) | 3″ | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | 50 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | MC326 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
Product Features
| Country of Origin | Germany |
