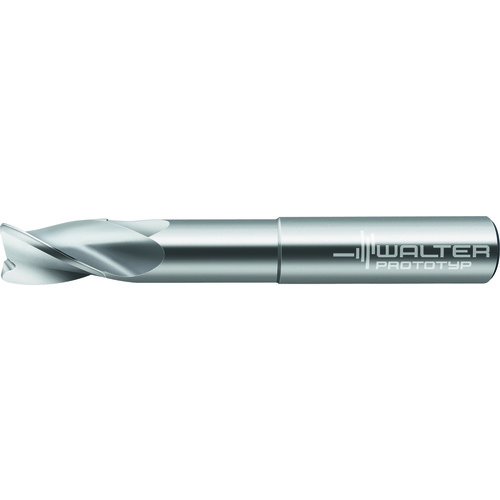

MB266.15.9A3X076C GRADE WJ30UU SC
SQ End Mill; 5/8″ Dia. × 1-5/8″ LOC × 5/8″ Shank Dia. × 5″ OAL ; 0.03″ RE ; 3 FL ; 3″ LBS ; Carbide ; Uncoated ; Series MB266
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 5/8″ | Usable Length (LU) | 3″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Grade | WJ30UU |
| Overall Length (OAL) | 5″ | Tool Type | Corner Radius |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | Uncoated | Body Material | Carbide |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.625″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | MB266 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.03″ |
Product Features
| Country of Origin | Germany |
