2BW3Y-20070E4R01

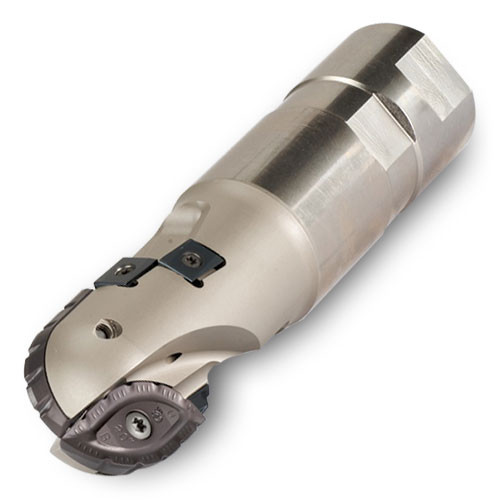

Indexable End Mill; 2″ Dia. × 2.7″ LOC × 2″ Shank Dia. × 11″ OAL × 6.716″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Corner Radius (RE) | 1″ |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 2.7″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 11″ | Measurement Type | Inch |
| Application | | Helical Interpolation | Rampdown | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2″ | Protruding Length (LPR) | 7″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 6.716″ |
Product Features
| Family Description | Roughing Ball Nose End Mill, 2 Effective Insert with 2 indexes Max. depth of cut: Full Radius Insert corners: .625″, .750″ & 1.000″ R Standard and serrated chip breaker inserts Side station inserts | Country of Origin | Usa |
Shipping Info
Package Weight
0.017
