1BW7Y-2003076R01

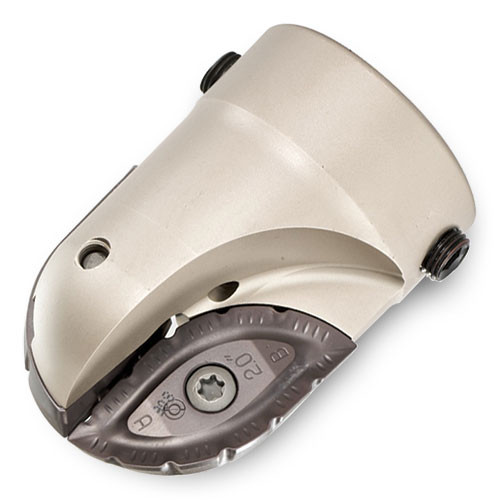

Indexable End Mill; 2″ Dia. × 1.7″ LOC
| Cutting Diameter (DC/DCX) | 2″ | Corner Radius (RE) | 0.5 |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1.7″ | Measurement Type | Inch |
| Application | | Helical Interpolation | Rampdown | Slotting | | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 3″ |
Product Features
| Family Description | Roughing Ball Nose End Mill, 2 Effective Insert with 2 indexes Max. depth of cut: Full Radius Insert corner: 1.00″ R Standard and serrated chip breaker inserts | Country of Origin | Usa |
Shipping Info
Package Weight
0.002
