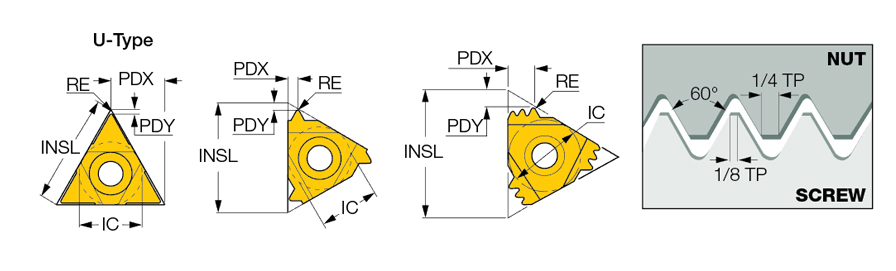

16ER 2.00 ISO IC08
Laydown Threading Insert ; 2 mm TP ; 60 Triangle Shape ; THFT | ; Carbide ; IC08 ; Uncoated
| Thread Standard | THFT | | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 2 mm | Shape | 60° Triangle |
| Corner Radius (RE) | 0.26 mm | Cutting Item Count (CICT) | 1 |
| Grade | IC08 | Tool Type | Threading Regular Inserts |
| Coating | Uncoated | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | External | Thread Form Type (THFT) | M60 |
| Application | | External Thread Milling | External Threading | |
Product Features
| Family Description | External ISO Metric (DIN13 12-1986 class: 6g), laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Application: general industry. | Country of Origin | Israel |
| Remarks | For Insert Identification System, see page For threading between walls use GRIP-type inserts TIP-ISO class: 6g |
Shipping Info
Package Weight
0.011
