12J1P-0501379R01

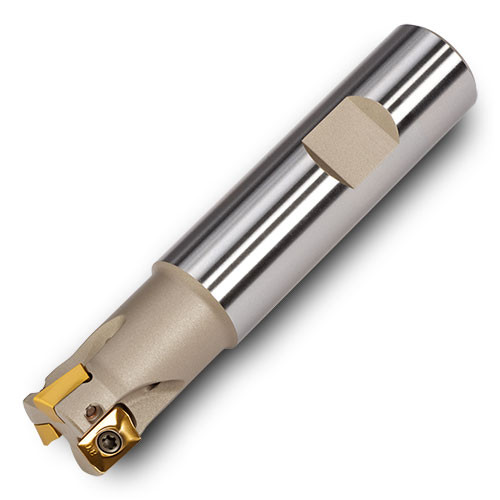

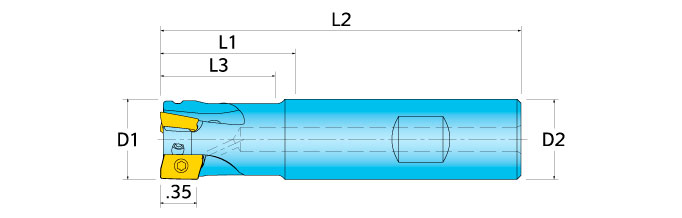

Indexable End Mill; 1/2″ Dia. × 0.35″ LOC × 5/8″ Shank Dia. × 3-1/4″ OAL × 1.18″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1/2″ | Usable Length (LU) | 1.18″ |
| Cutting Diameter (DC) | 1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 1 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.35″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3-1/4″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 1.34″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Insert corners: .015″, .031″, .062″, .078″, .120″ R | Country of Origin | Germany |
Shipping Info
Package Weight
0.209
