16EL 8 API RD IC908

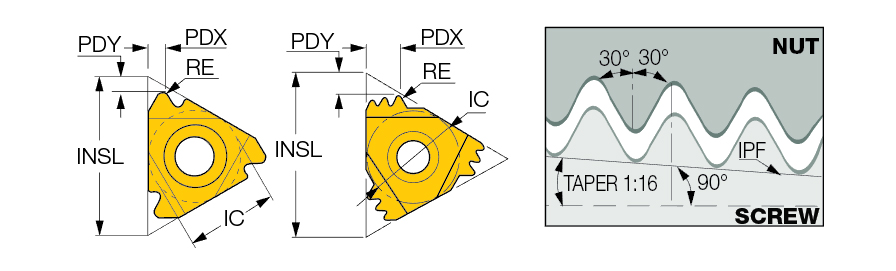

‎External API - oil thread, round profile (API Spec 5B8-1996) laydown threading inserts.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.649″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 8 Threads/" | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0169″ | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | APR60 |
| Cutting Position | External | Profile Distance EY (PDY) | 0.0532″ |
| Application | | External Threading | |
Product Features
| Family Description | External API - oil thread, round profile (API Spec 5B8-1996) laydown threading inserts. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info API Spec 5B8-1996 |
Shipping Info
Package Weight
0.011
