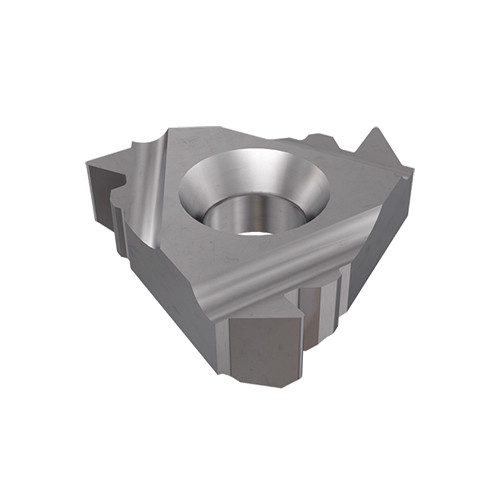

16IR 12 ABUT IC250
Laydown Threading Insert ; 12 TPI ; 60 Triangle Shape ; 0.649″ Length ; 3/8″ IC ; THFT | ; Carbide ; IC250 ; TiCN+TiN

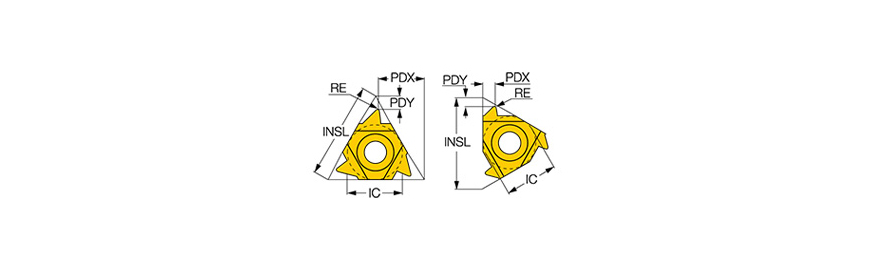

| Thread Standard | THFT | | Application | | Internal Threading lay down | |
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 12 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.0047″ | Tool Type | Threading Regular Inserts |
| Grade | IC250 | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | ABUT |
| Cutting Position | Internal | Profile Distance EY (PDY) | 0.0551″ |
Product Features
| Family Description | Internal American Buttress (ANSI B1.9-1973 Class 2) laydown threading inserts, for high force transmission in one direction. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info ANSI B1.9-1973 Class 2 |
Shipping Info
Package Weight
0.010
