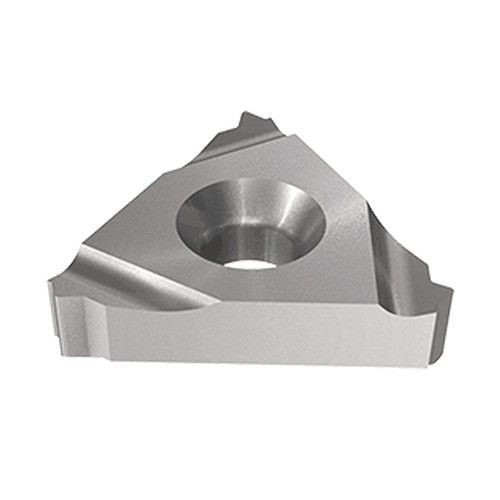

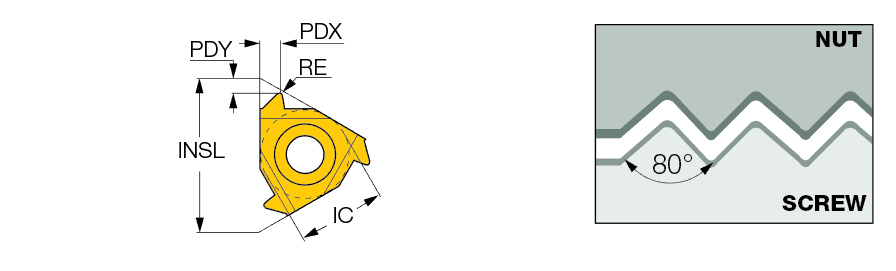

16IR 18 PG IC908
Laydown Threading Insert ; 18 TPI ; 60 Triangle Shape ; 0.649″ Length ; 3/8″ IC ; THFT | ; Carbide ; IC908 ; TiAlN
| Thread Standard | THFT | | Application | | Internal Thread Milling | Internal Threading lay down | |
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.649″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 18 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.0059″ | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | PG |
| Cutting Position | Internal | Profile Distance EY (PDY) | 0.0315″ |
Product Features
| Family Description | Internal thread profile inserts used for the electric industry. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info |
Shipping Info
Package Weight
0.014
