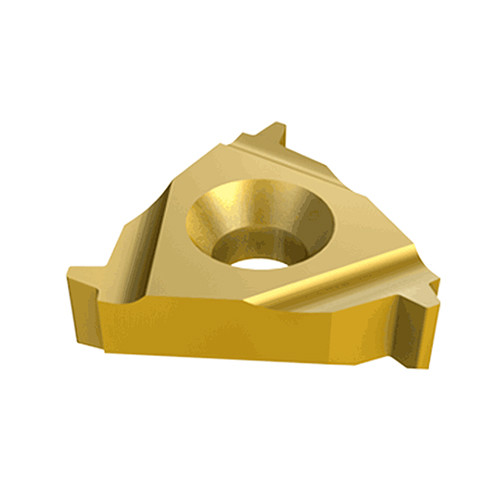

16IR 16 STACME IC50M
Laydown Threading Insert ; 16 TPI ; 60 Triangle Shape ; 0.649″ Length ; 3/8″ IC ; THFT | ; Carbide ; IC50M ; Uncoated
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.649″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 16 | Tool Type | Threading Regular Inserts |
| Grade | IC50M | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | STAC29 |
| Cutting Position | Internal | Profile Distance EY (PDY) | 0.0394″ |
| Application | | Internal Threading lay down | |
Product Features
| Family Description | Internal STUB ACME laydown threading inserts, for control valves and shallow ACME profile when normal ACME is too deep due to wall thickness. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info Tolerance: Class 2G |
Shipping Info
Package Weight
0.023
