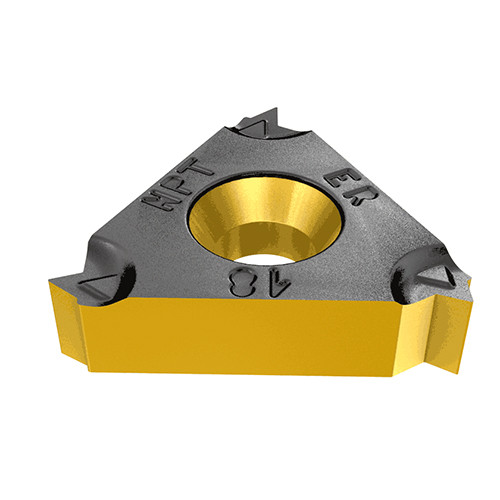

16ERM 8 NPT IC808
External NPT (National Pipe Threads) full profile laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Used for steam, gas and water pipes.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

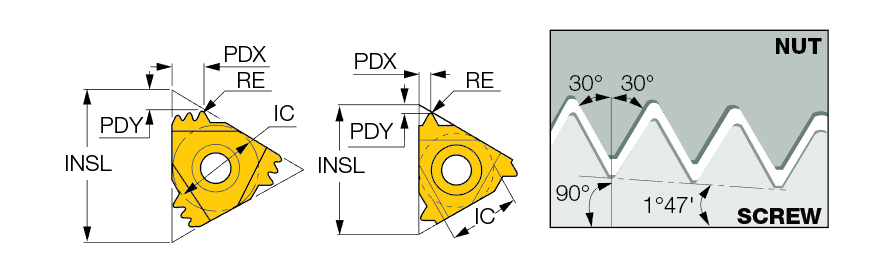

| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.649″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 8 | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0047″ | Tool Type | Threading Regular Inserts |
| Grade | IC808 | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | NPT60 |
| Cutting Position | External | Profile Distance EY (PDY) | 0.0512″ |
| Application | | External Threading | |
Product Features
| Family Description | External NPT (National Pipe Threads) full profile laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Used for steam, gas and water pipes. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info. For threading between walls use GRIP-type insert TIP-NPT. National Pipe Threads ANSI/ASME B1.20.1-1983 |
Shipping Info
LocalField10
0
Package Weight
0.044
