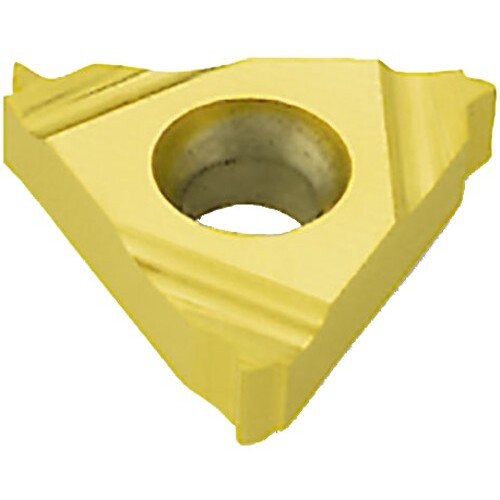

11EL28UN TT9030
Laydown Threading Insert; 11EL28UN TT9030 ; 28 TPI × 0.433″ Length ; Carbide ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Insert Length (INSL) | 0.433″ | Insert Style | Regular |
| Thread Pitch (TP) | 3 mm | Cutting Direction (HAND) | Left Hand |
| Threads per Inch (TPI) | 28 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.004″ | Cutting Item Count (CICT) | 2 |
| Grade | TT9030 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | External | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
Product Features
| Family Description | UN, UNC, UNF, UNEF, ANSI B1, 3M-1986 Class: 2A [.433-1.063] | Country of Origin | Israel |
Shipping Info
Package Weight
0.1
