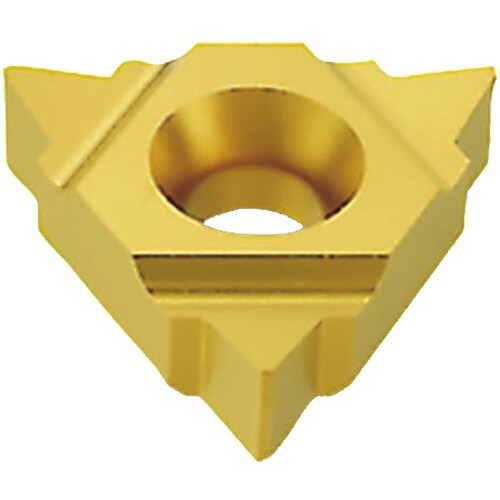

27UEIRL3.50W TT9030
Laydown Threading Insert; 27UEIRL350W TT9030 ; 3.5 mm TP × 1.063″ Length ; Carbide ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Insert Length (INSL) | 1.063″ | Insert Style | U-Type |
| Thread Pitch (TP) | 3 mm | Cutting Direction (HAND) | Neutral |
| Threads per Inch (TPI) | 3.5 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.037″ | Cutting Item Count (CICT) | 2 |
| Grade | TT9030 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | External|Internal | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
Product Features
| Family Description | BSW, BSF, BSP, B.5.84-1956 DIN 259 Medium Class | Country of Origin | Israel |
Shipping Info
Package Weight
0.3
