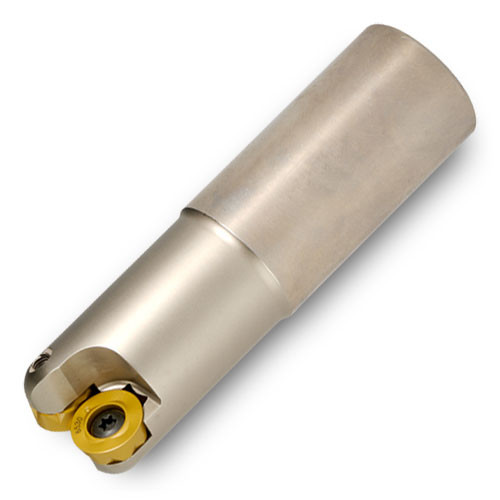

15B4M-1502586R01
| Cutting Diameter (DC/DCX) | 1-1/2″ | Usable Length (LU) | 2.803″ |
| Cutting Diameter (DC) | 3/4″ | Corner Radius (RE) | 3/8″ |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5.16″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 1.6 Degrees | Body Material | Steel |
| Application | | Facing | Helical Interpolation | Rampdown | | Protruding Length (LPR) | 2-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1-1/2″ |
Product Features
| Family Description | .375″ Max. Depth of Cut .750″ Button I.C. | Country of Origin | Usa |
Shipping Info
Package Weight
0.005
