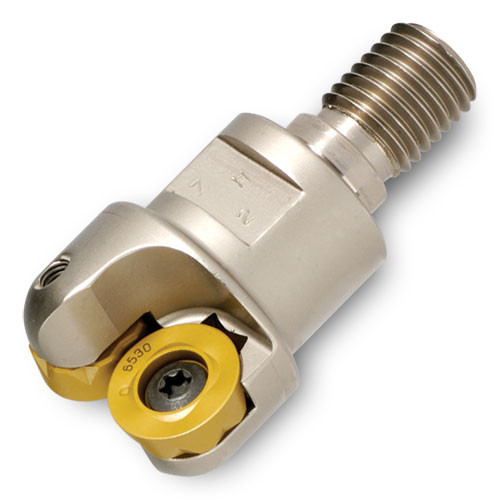

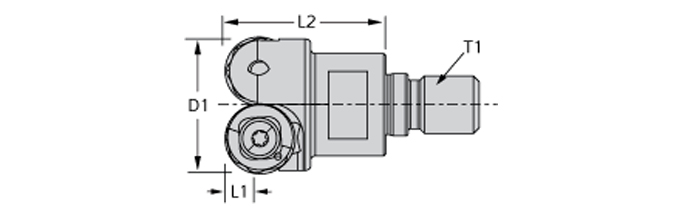

15B4M-15017X8R01
Indexable End Mill; 1-1/2″ Dia. × 3/8″ Max Depth
| Cutting Diameter (DC/DCX) | 1-1/2″ | Corner Radius (RE) | 3/8″ |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.6 Degrees | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Rampdown | | Body Material | Steel |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Functional Length (LF) | 2″ | Cutting Diameter Maximum (DCX) | 1-1/2″ |
Product Features
| Family Description | .375″ Max. Depth of Cut .750″ Button I.C. | Country of Origin | Usa |
Shipping Info
Package Weight
0.001
