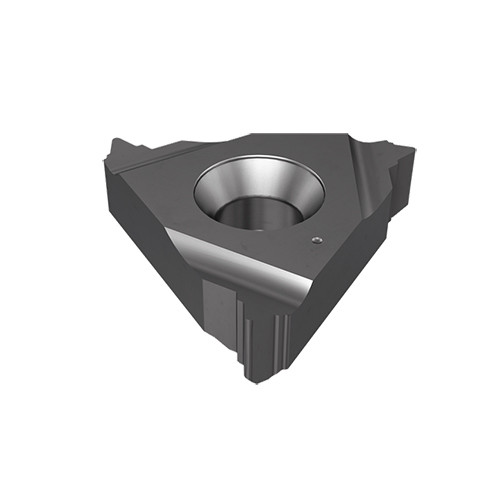

11ER 24 UNJ IC908
External UNJ ( MIL-S-8879C 9-1992 Class 3A ) profile, laydown threading inserts. Application: aviation and aerospace industry.
| Thread Standard | THFT | | Application | | External Thread Milling | External Threading | Internal Thread Milling | |

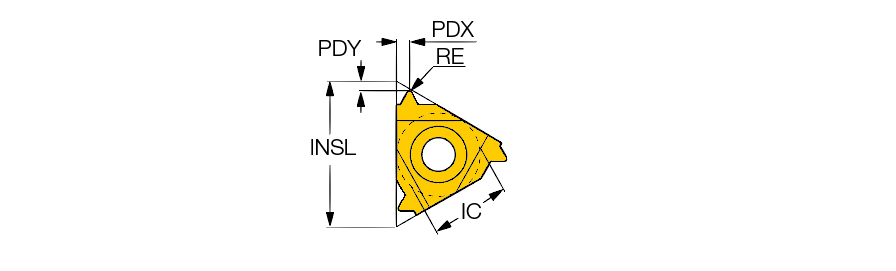

| Inscribed Circle Diameter (IC) | 1/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.433″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 24 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.0063″ | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | NJ60 |
| Cutting Position | External | Profile Distance EY (PDY) | 0.0276″ |
Product Features
| Family Description | External UNJ ( MIL-S-8879C 9-1992 Class 3A ) profile, laydown threading inserts. Application: aviation and aerospace industry. | Country of Origin | Israel |
| Remarks | UNJ MIL-S-8879C 9-1992 Class 3A For Insert Identification System, click on More Info |
Shipping Info
Package Weight
0.023
