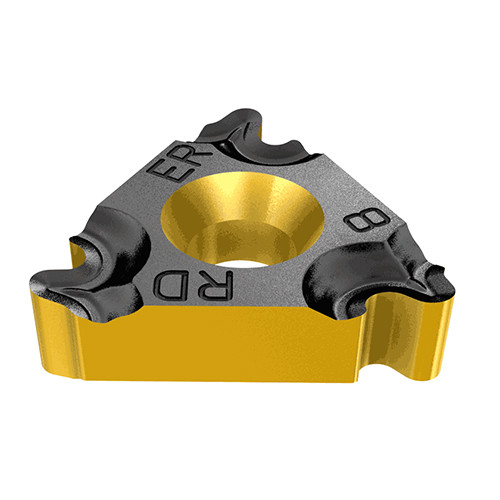

27IR 4 RND IC250
Laydown Threading Insert ; 4 TPI ; 60 Triangle Shape ; 1.083″ Length ; 5/8″ IC ; THFT | ; Carbide ; IC250 ; TiCN+TiN
| Thread Standard | THFT | | Application | | Internal Threading lay down | |
| Inscribed Circle Diameter (IC) | 5/8″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 1.083″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 4 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.0551″ | Tool Type | Threading Regular Inserts |
| Grade | IC250 | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | RN30 |
| Cutting Position | Internal | Profile Distance EY (PDY) | 0.0866″ |
Product Features
| Family Description | Internal round laydown threading inserts, for firefighting and food industry, pipe couplings (DIN 405 API spec 5B-8-1996). | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info Tolerance: Class 7H |
Shipping Info
Package Weight
0.052
