15X1W-07020S1R01

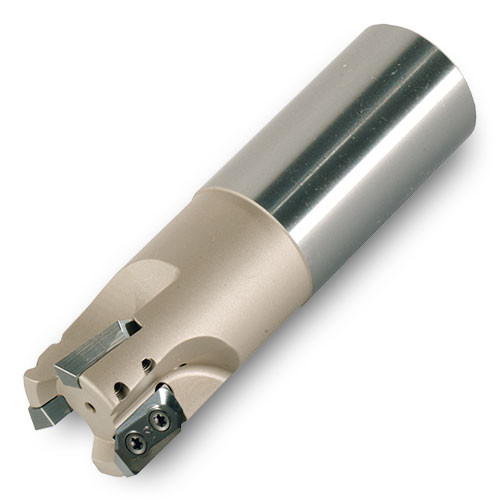

Indexable End Mill; 3/4″ Dia. × 0.61″ LOC × 1″ Shank Dia. × 5″ OAL × 2-1/4″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 3/4″ | Usable Length (LU) | 2-1/4″ |
| Cutting Diameter (DC) | 3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 1 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.61″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 5″ | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 4.6 Degrees | Body Material | Steel |
| Application | | BALANCIN | Helical Interpolation | Rampdown | Shouldering | Slotting | | Protruding Length (LPR) | 2-3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | Insert corners: .020″ .031″ .062″ .093″, .125″ R | Country of Origin | Germany |
Shipping Info
Package Weight
0.763
