15V1G-10057S1R01

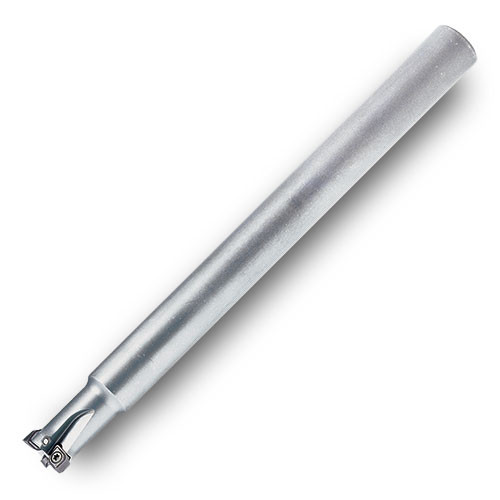

Indexable End Mill; 1″ Dia. × 1″ Shank Dia. × 8″ OAL × 2.87″ LU ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 8″ | Measurement Type | Inch |
| Application | | Shouldering | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Protruding Length (LPR) | 5-3/4″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 2.87″ |
Product Features
| Family Description | .118″ Max. depth of cut Insert corner radius: 2 mm (.078″) .040″ Wiping flat Insert with 4 indexes | Country of Origin | Usa |
Shipping Info
Package Weight
0.004
