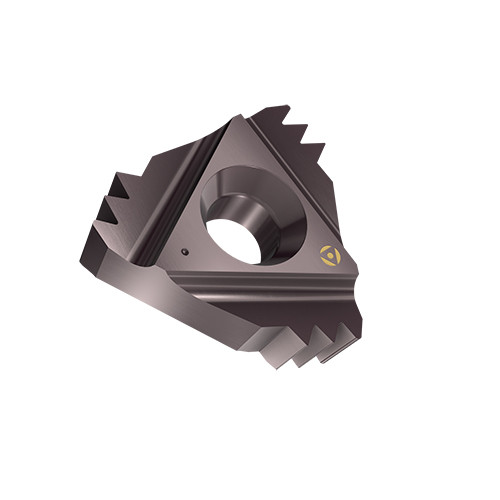

27IR 11.5NPT3M AC22R
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 5/8″ | Insert Style | Laydown (LT) |
| Insert Length (INSL) | 1.08″ | Threads per Inch Minimum (TPIN) | 11.5 |
| Threads per Inch (TPI) | 11.5 | Threads per Inch Maximum (TPIX) | 11.5 |
| Corner Radius (RE) | 0″ | Tool Type | Threading Regular Inserts |
| Grade | AC22R | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Number of Teeth | 0 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | |
Product Features
| Family Description | Internal Right Hand NPT (National Pipe Threads) Full Profile3-Tooth Laydown Threading Inserts for Steam, Gas and Water Pipes | Country of Origin | USA |
Shipping Info
Package Weight
0.001
