| Thread Standard | UN | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 3/8″ | Applicable Material | Steel|High Temp Alloy |
| Insert Length (INSL) | 16 | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 32 | Tool Type | Unified Full Profile Threading Insert |
| Grade | BMA |
Product Features

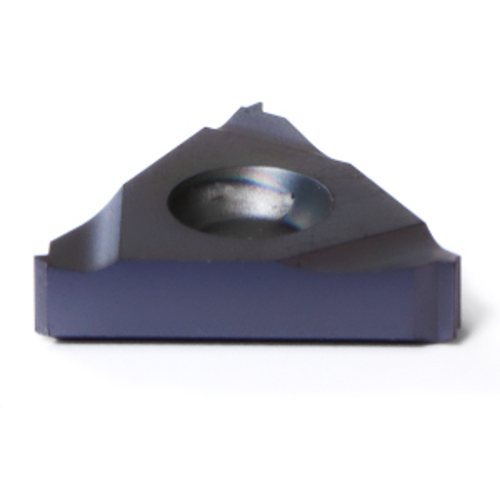

| Remarks | •UN (Unified) Full Profile Inserts
•To form a quality complete thread profile including the crest. For every thread standard and pitch a separate insert is required. Inserts are supplied in packages of 10 inserts and a screw.
•Insert Grade SelectionChoose the CARMEX grade specifically formulated for your application.
•Uncoated GradesK20 (C–2): Carbide grade for non-ferrous metals, aluminum and cast iron.P30 (C–5): Carbide grade for carbon and cast steels, works well at medium to low cutting speeds.
•Coated GradesMXC (C–2TiN): PVD TiN coated micrograin for free cutting untreated alloy steels (below 30 HRC), for stainless steels and cast iron.P25C (C–5 TiN): PVD TiN coated grade for treated and hard alloy steels (25 HRC and up), at medium to low cutting speeds.BMA (C–2 TiAlN): PVD TiAlN coated sub-micrograin grade for stainless steels and exotic materials at medium to high cutting speeds. | Country of Origin | Israel |
Shipping Info
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.142
