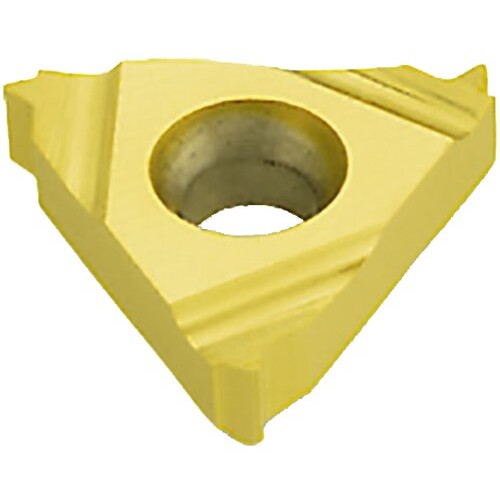

16EL1.75ISO TT7010
Laydown Threading Insert; 16EL175ISO TT7010 ; 1.75 mm TP × 0.63″ Length ; Carbide
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Insert Length (INSL) | 0.63″ | Insert Style | Regular |
| Thread Pitch (TP) | 1.75 | Cutting Direction (HAND) | Left Hand |
| Corner Radius (RE) | 0.007″ | Shape | 60° Triangle |
| Grade | TT7010 | Cutting Item Count (CICT) | 2 |
| Coating | TiAlN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | External | Body Material | Carbide |
| Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | DIN 13 12-1986 Class: 6G | Country of Origin | Israel |
Shipping Info
Package Weight
0.1
