22ILN60 P30

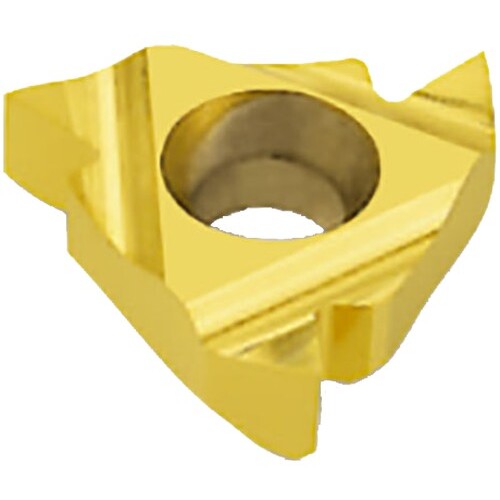

Laydown Threading Insert; 22ILN60 P30 ; 3.5 mm - 5 mm TP × 0.866″ Length
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Insert Length (INSL) | 0.866″ | Insert Style | Regular |
| Thread Pitch (TP) | 3.5-5.0 | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 7-5 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.009″ | Cutting Item Count (CICT) | 2 |
| Grade | P30 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | Internal | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.04
