16IRM1.00ISO TT5080

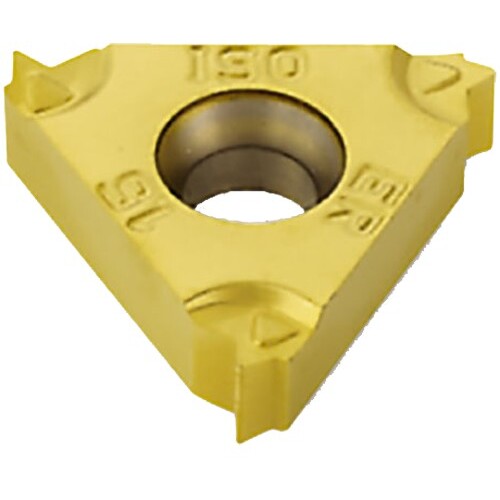

Laydown Threading Insert; 16IRM100ISO TT5080 ; 0.039″ TP × 3/8″ IC ; TiAlN+AlTiN+TiAlN+TiN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Inscribed Circle Diameter (IC) | 3/8″ | Insert Style | M-Type |
| Insert Length (INSL) | 0.63″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 1.00 | Shape | 60° Triangle |
| Corner Radius (RE) | 0.002″ | Cutting Item Count (CICT) | 2 |
| Grade | TT5080 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN+AlTiN+TiAlN+TiN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Steel |
| Cutting Position | Interl | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.1
