1DD1H-1502586R01

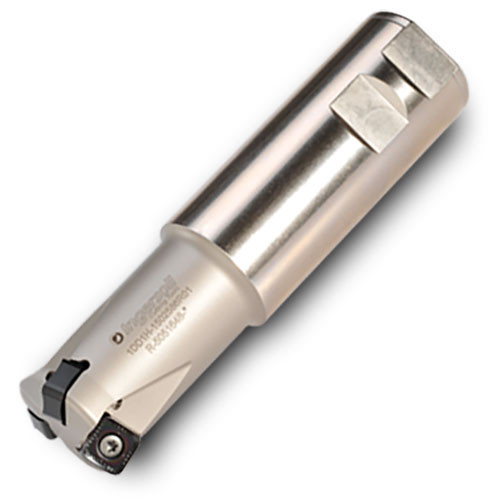

Indexable End Mill; 1-1/2″ Dia. × 1-1/2″ Shank Dia. × 2-1/2″ LU
| Cutting Diameter (DC/DCX) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 0.773″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 3 | Measurement Type | Inch |
| Application | | Facing | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Protruding Length (LPR) | 3-3/4″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 2-1/2″ | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Corner Radius (RE) | 0.155″ |
Product Features
| Family Description | .065″ Depth of cut 12 mm Insert with 8 indexes Great Price-per-Edge economy! | Country of Origin | Usa |
Shipping Info
Package Weight
0.005
