19N1A-1001180R01

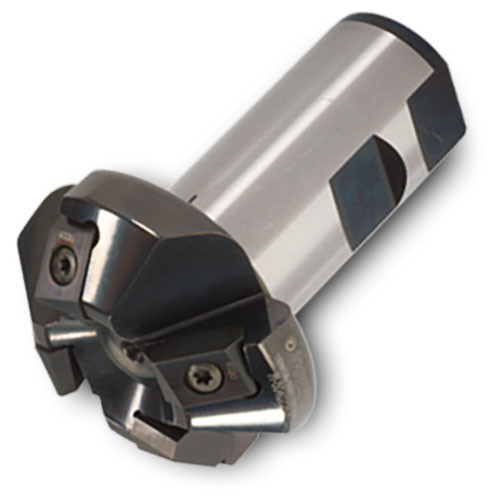

Indexable End Mill; 1.56″ Dia. × 0.31″ LOC × 1″ Shank Dia. × 3-3/8″ OAL ; 47.8 Degrees
| Cutting Diameter (DC/DCX) | 1.56″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1″ | Tool Cutting Edge Angle (KAPR) | 47.8 Degrees |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.31″ | Measurement Type | Inch |
| Overall Length (OAL) | 3-3/8″ | Body Material | Steel |
| Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | | Protruding Length (LPR) | 1-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg | Cutting Diameter Maximum (DCX) | 1.56″ |
| Body Diameter (BD) | 1.84″ |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.002
