266RL22BU01A050E 1125

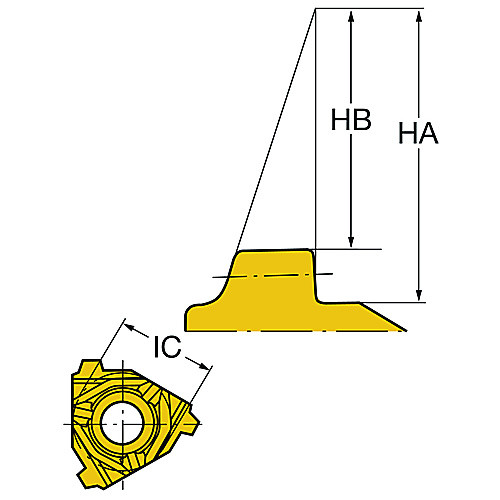

Laydown Threading Insert ; 5 TPI ; 12.7 mm IC ; API Buttress ; Carbide ; 1125
| Thread Standard | API Buttress | Cutting Position | Internal |
| Inscribed Circle Diameter (IC) | 12.7 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 5 | Insert Style | 266RL-22BU01A050E |
| Insert Thickness (S) | 5.56mm | Cutting Direction (HAND) | Right Hand |
| Grade | 1125 | Cutting Item Count (CICT) | 1 |
| Cutting Edge Material | Carbide | Hole Diameter | 5.7 mm |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Length
5.50000
Package Width
2.50000
Package Height
1.00000
Package Weight
0.331
