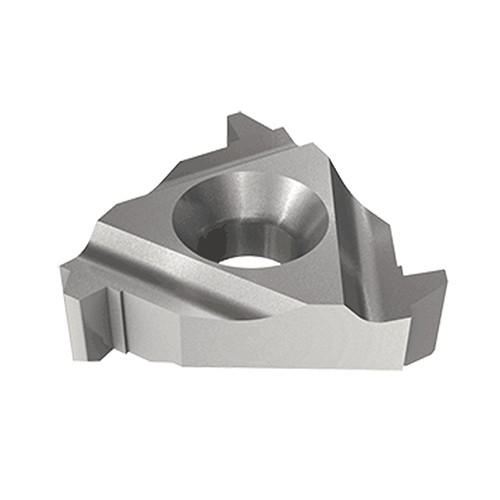

16IR 2 SAGE IC908
Laydown Threading Insert ; 2 mm TP ; 60 Triangle Shape ; 0.649″ Length ; 3/8″ IC ; THFT | ; Carbide ; IC908 ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

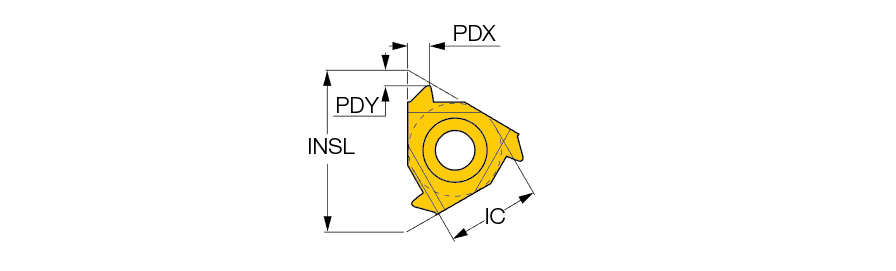

| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.649″ | Shape | 60° Triangle |
| Thread Pitch (TP) | 2 mm | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | SAGE |
| Cutting Position | Internal | Profile Distance EY (PDY) | 0.0472″ |
| Application | | Internal Threading lay down | |
Product Features
| Family Description | Internal Sagengenwinde (DIN 513) thread. Application: for high force in one direction application. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info. |
Shipping Info
Package Weight
0.015
